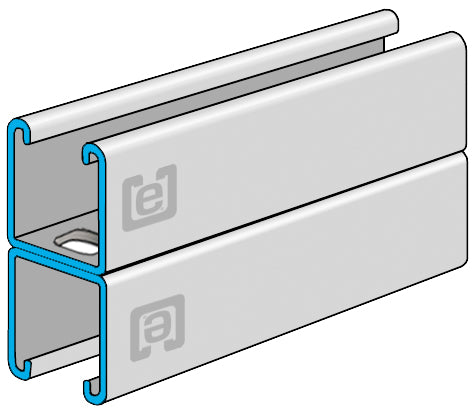

ES2002T3 STANDARD, ES2002T3EH SLOTTED1-5/8" x 1-5/8"
Part No: ES2002T3 Weight: 378lbs /100 Ft.
Part No: ES2002T3EH Weight: 370lbs /100 Ft.
Order by: Part Number, Finish, Length
Material: ASTM A-653 LOW CARBON STEEL
PL - Plain
PG90 - Pre-Galvanized Grade 90
PG60 - Pre-Galvanized Grade 60
HG - Hot Dipped Galvanized
Length (feet) : 10'& 20'
For concentrated load at center span, divide uniform load by 2 and multiply corresponding deflection by 0.8.
This load table is based on a solid channel section.
Loads include weight of channel, which must be deducted.
Loads must be multiplied by the applicable unbraced factor located in the blue column in the chart above.
For Pierced Channels, reduce beam load values as follows: ES2002T3EH 15%
** KL r>200
Column loads are for allowable axial loads and must be reduced for eccentric loading.
All specifications subject to change without notice.
