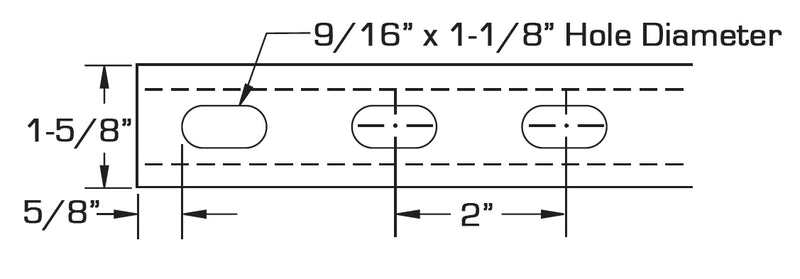

ES400 STANDARD, ES400EH SLOTTED1-5/8" x 1"
Part No: ES400 Weight: 144bs /100 Ft.
Part No: ES400EH Weight: 136lbs /100 Ft.
Order by: Part Number, Finish, Length
Material: ASTM A-653 LOW CARBON STEEL
PL - Plain
PG90 - Pre-Galvanized Grade 90
PG60 - Pre-Galvanized Grade 60
HG - Hot Dipped Galvanized
Length (feet) : 10'& 20'
*Bearing load may govern capacity.
NR - Not Recommended.
This load table is based on a solid channel section.
For concentrated load at center of span, divide uniform load by 2 and
multiply corresponding deflection by 0.8.
Loads include weight of channel, which must be deducted.
Loads must be multiplied by the applicable unbraced factor located in
the blue column in the chart above.
For Extruded Aluminum Channels, reduce beam load values 38%.
** KL r>200
Column loads are for allowable axial loads and must be
reduced for eccentric loading.
Pull Out Strength: 2,000 lbs. per bolt when 1/2" ES NS channel nuts
All specifications subject to change without notice.
