eSTRUT™ Cold Formed Strut Channel, 12 Gauge, 1-5/8" x 2-7/16"

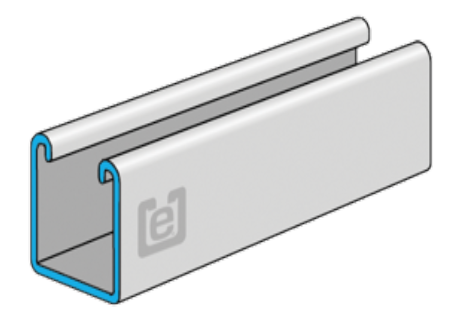

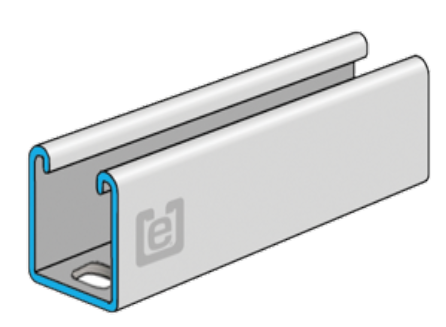

ES150 STANDARD, ES150EH SLOTTED

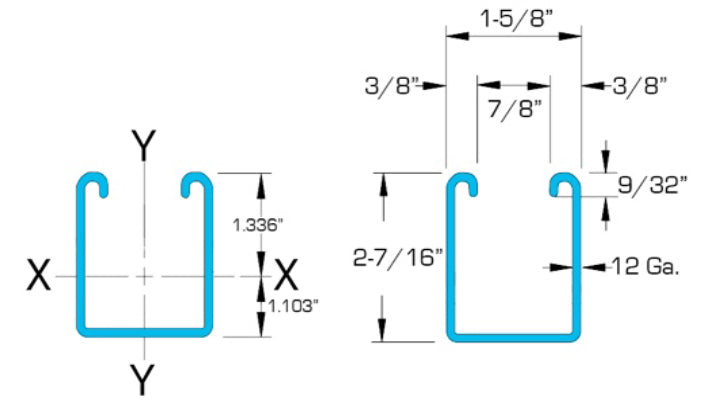

1-5/8" x 2-7/16"
12 Gauge



Part No: ES150  Weight: 247lbs /100 Ft.
Part No: ES150EH  Weight: 242lbs /100 Ft.

Order by: Part Number, Finish, Length

Material: ASTM A-653 LOW CARBON STEEL

Finish:
PL - Plain
PG90 - Pre-Galvanized Grade 90
PG60 - Pre-Galvanized Grade 60
HG - Hot Dipped Galvanized



Length (feet) : 10'& 20'


TDS:

 *Bearing load may govern capacity.
This load table is based on a solid channel section.
For concentrated load at center of span, divide uniform load by 2 and
multiplycorresponding deflection by 0.8.
Loads include weight of channel, which must be deducted.
Loads must be multiplied by the applicable unbraced factor located in the
blue column in the chart above.
For Pierced Channels, reduce beam load values as follows: ES150EH 15%



** KL r>200.
Column loads are for allowable axial loads and must be reduced for
eccentric loading.



Resistance to Slip: 1,500 lbs. per bolt when 1/2" ES NS channel nuts are
used.
Pull Out Strength: 2,000 lbs. per bolt when 1/2" ES NS channel nuts are
used.









All specifications subject to change without notice.
