Description

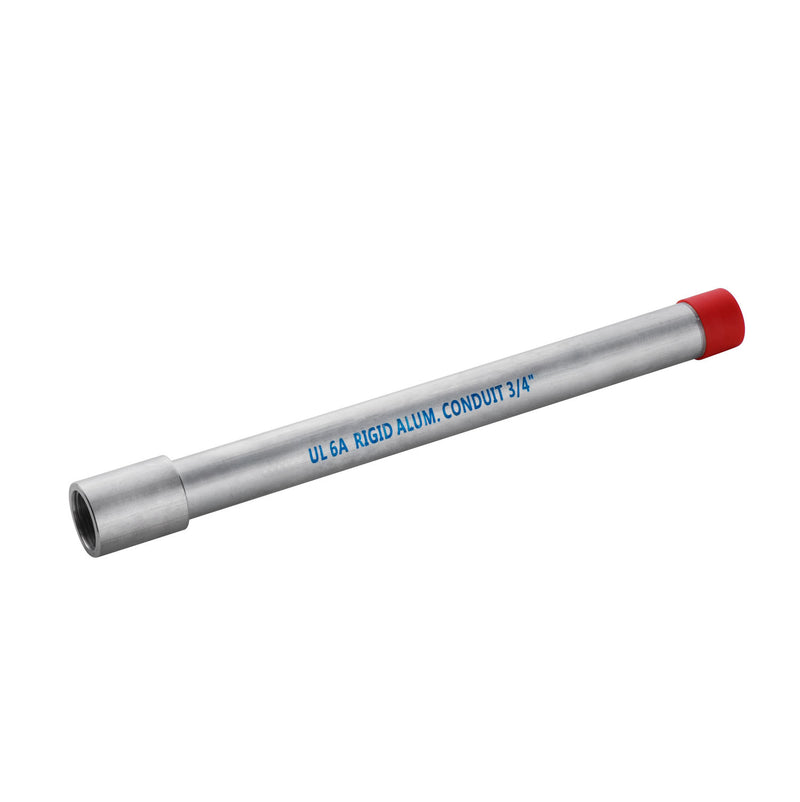

RAC (Rigid Aluminum Conduit)
MATERIAL:
6063 Aluminum Alloy in Temper Designation T1
APPLICATIONS:
- Used to provide a continuous raceway for wire pulling.
FEATURES:
- Threaded on both ends, one fitted with a coupling, one with a color-coded thread protector.
- Light weight, approximately one-third the weight of steel.
- Corrosion Resistant to most industrial environments.
- Easy to cut and bend.
COMPLIANCE:
UL 6A, ANSI C80.5
TDS:
PRODUCT INFORMATION & DIMENSIONS (in):
Dimensions & weights are nominal, subject to change without notice.
Outside diameter tolerances:
+/- .005 in. (.13mm) for trade sizes 1/2 (16mm) through 2 (53mm);
+/- .010 in. (.25mm) for trade sizes 2-1/2 (63mm);
+/- .015 in. (.38mm) for trade size 3 (78mm);
+/- .020 in. (.51mm) for trade sizes 3-1/2 (91mm) and 4 (103mm).
NOTE: Length = 10 ft. (3.05m) with a tolerance of +/- .25 in. (6.35 mm)
